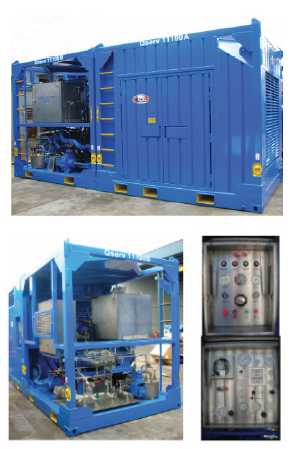

Twin section Zone II 180k nitrogen convertor

Applications

• Maximum Pump Rate – 180,000 SCF/Hr
• Maximum Pump Pressure – 10,000 psi

Features

• Engraved stainless steel control panel giving central control and visual display of rates, pressures. Includes chart recorder
• Triplex pump: Inlet / Return Connections: 1 1/2½” CGA, Discharge: 2” Fig 1502
• The Detroit Diesel 8V-92TA engine section is soundproofed to 80dB(A) and built to the highest standards and current legislation. The unit is fitted with fully enclosed drip trays complete with drain points
• Built to Zone II Specification (Equipment and Protection systems Intended for Use inPotentially Explosive Atmospheres). Emergency stop, fuel stop, fail safe system. Over pressure tie-in
• Designed to be lifted as a one piece unit or split into two sections & lifted separately
• ISO Corner Castings fitted for securing to trucks
• Tie-down rings fitted for chaining to trucks / vessel or rig site

Benefits

• Certified to allow the duty holder to demonstrate compliance with the requirements of SI 913
• Certified for use in a Zone II area
